 Guitar #018
Acoustic Honduras Mahogany
OO
12th fret
Solid Sitka Spruce top, Honduras Mahogany back and
sides, Honduras Mahogany neck.
Completed August 4th 2004
This guitar has been built for a specific person.
She wanted a guitar similar in size to a classical guitar, but easier to
play. A 12th fret neck to body joint and a size similar to a classic
Martin OO sounded like it would fit the bill. Because of its size and the
use of Honduras Mahogany it is vary light in weight. This guitar also has
a thinner body than a Dreadnought and therefore has less air to push giving a
nice balanced sound but with less volume.
|
Top |
Solid Sitka Spruce |
| Rosette |
4 Black/Maple/Black bands
with one center Abalone band |
| Bracing |
Sitka Spruce |
| Back and sides |
Solid Honduras Mahogany |
| Backstrip |
Black/Maple zipper |
| Body Binding |
Ebony |
| Purfling |
Maple/Black/Maple/Black real
wood |
| End graft |
Ebony |
| Heal and Tail Blocks |
African Mahogany |
| Kerfed Lining |
Mahogany |
| Neck |
One peace Honduras Mahogany |
| Head Cap |
Ebony |
| Head Inlay |
"Dickert" in Abalone |
| Neck heal cap |
Ebony |
| Truss Rod |
Twin rod two-way adjustable at head |
| Truss Rod access cover |
Ebony / Maple pin line |
| Fret Board |
Ebony |

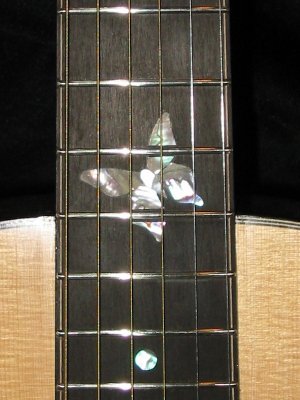

| Position Marks |
Abalone Dots, with a Abalone
and Mother of Pearl Butterfly at the 12th fret. |
| Fret Board Binding |
Ebony with Maple pin line |
| Bridge |
Ebony |
| Bridge pins |
Ebony with Abalone Dots |
| Bridge Saddle |
Bone, compensated for intonation,
graduated for string thickness |
| Nut |
Bone, Graduated for string
thickness |
| End pin |
Ebony with Abalone dots |
| Tuners |
Gold Grover Rotomatic Guitar
Machines |
| Finish |
Combination of brushed and French Polished Shellac |
Scale
Length..............................25 1/2 inches
Nut width...................................1 3/4 inches
String spacing at saddle..........2 1/4 inches
Upper bout................................9 7/8 inches
Waist..........................................8 1/16 inches
Lower bout................................14 3/8 inches
Body Depth at tail block..........4 1/8 inches
Fret board radius......................12 inches
|
  |
Back
|
